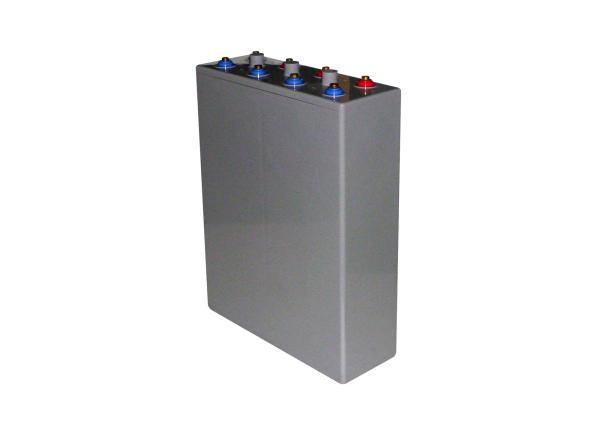

185kg Approx Weight OPzV Gel Battery 2V2500Ah Wide Operating Temperature Range

Model Number : OPzV2-2500

Certification : CE UL ISO9001 ISO14001

Place of Origin : Wuhan

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T L/C, D/A, D/P

Supply Ability : 10000PCS/30Days

Delivery Time : 30 Days

Packaging Details : Carton and Wooden Pallet

Type : Tubular Gel Battery

Nominal Voltage : 2V

Rated Capacity : 2500Ah

Battery Case : ABS

Battery Designed Life : More than 20 Years

Approx Weight : 185Kg

Terminal Type : Female Copper Insert M8 (torque:10~12N.m)

Application : Telecom Outdoor Applications, Renewable Energy Systems and Other Harsh Environment Applications.

Contact Now

2V2500Ah Tubular Gel Battery OPzV Battery Deep Cycle Gel Battery Pure Gel Battery

Product Features

The OPzV series adopts an Immobilized Gel and Tubular Positive Plate technology. It offers high reliability and stable performance. By using diecasted positive grid and patented active material formula, it exceeds the DIN standard values and offer 20+ years design life in float service. It is very suitable for cyclic use under extreme operating conditions. This series is recommended for telecom outdoor applications, renewable energy systems and other harsh environment applications.

Construction

Positive plate :Tubular plate with die cast Pb-Ca alloy grid

Negative plate : Balanced Pb-Ca grid for improved recombination efficiency

Separator : leaf shape polymer separator

Electrolyte : Dilute high purity sulphuric acid with fumed Silica gel

Battery container and cover : ABS

Pillar seal: 100% factory tested, proven two layers epoxy resin seal

Relief valve : Complete with integrated flame arrestor

Specifications

Nominal Voltage (V)	2
Designed Floating Life (20^oC)	20+ Years
Nominal Capacity (20^oC)	2500 Ah @ C10 (to 1.80Vpc)
Demensions	L487mm×W212mm×H807mm
Approx. Weight	185 kg (408.0 lbs)
Terminal Type	Female Copper Insert M8 (torque:10~12N.m)
Internal Resistance	Approx. 0.20mOhm (fully charged @ 25°C)
Max. Charge Current	500 A
Max. Discharge Current (5S)	4000 A
Short Circuit Current	10000 A
Self Discharge	Approx. 2% per month @ 20°C
Ambient Temperature	Discharge: -40~65°C Charge: -30~65°C Storage: -25~45°C
Float Charge Voltage	2.25 - 2.29V (-3mV / ℃/ cell)
Equalize Charge Voltage	2.35 - 2.40V (-5mV / ℃/ cell)
Container Material	ABS(UL94-V0 optional)

DIMENTIONS

185kg Approx Weight OPzV Gel Battery 2V2500Ah Wide Operating Temperature Range

BATTERY DISCHARGE TABLE PARAMETERS FOR SOLAR & WIND APPLICATIONS

CHARACTERISTICS

Application

Telecom outdoor applications, renewable energy systems, other harsh environment applications.

Advantages

1. 20+ years design life at floating condition.

2. Wide operating temperature range from -40C to 60C.

3. Tubular positive plate with prolonged cycle life.

4. Nano Silica gel electrolyte.

5. Lead Calcium die cast grid with improved corrosion resistance capability.

6. Excellent deep discharge recovery capability.

185kg Approx Weight OPzV Gel Battery 2V2500Ah Wide Operating Temperature Range.pdf
